Internal thread assembly type self-lubricating rod end joint bearing series

Product Question
+

  • 产品描述
  • Description
    • Commodity name: SI.T/K
    • Commodity ID: 55001
    • 单独产品名称: Internal thread assembly type self-lubricating rod end joint bearing series

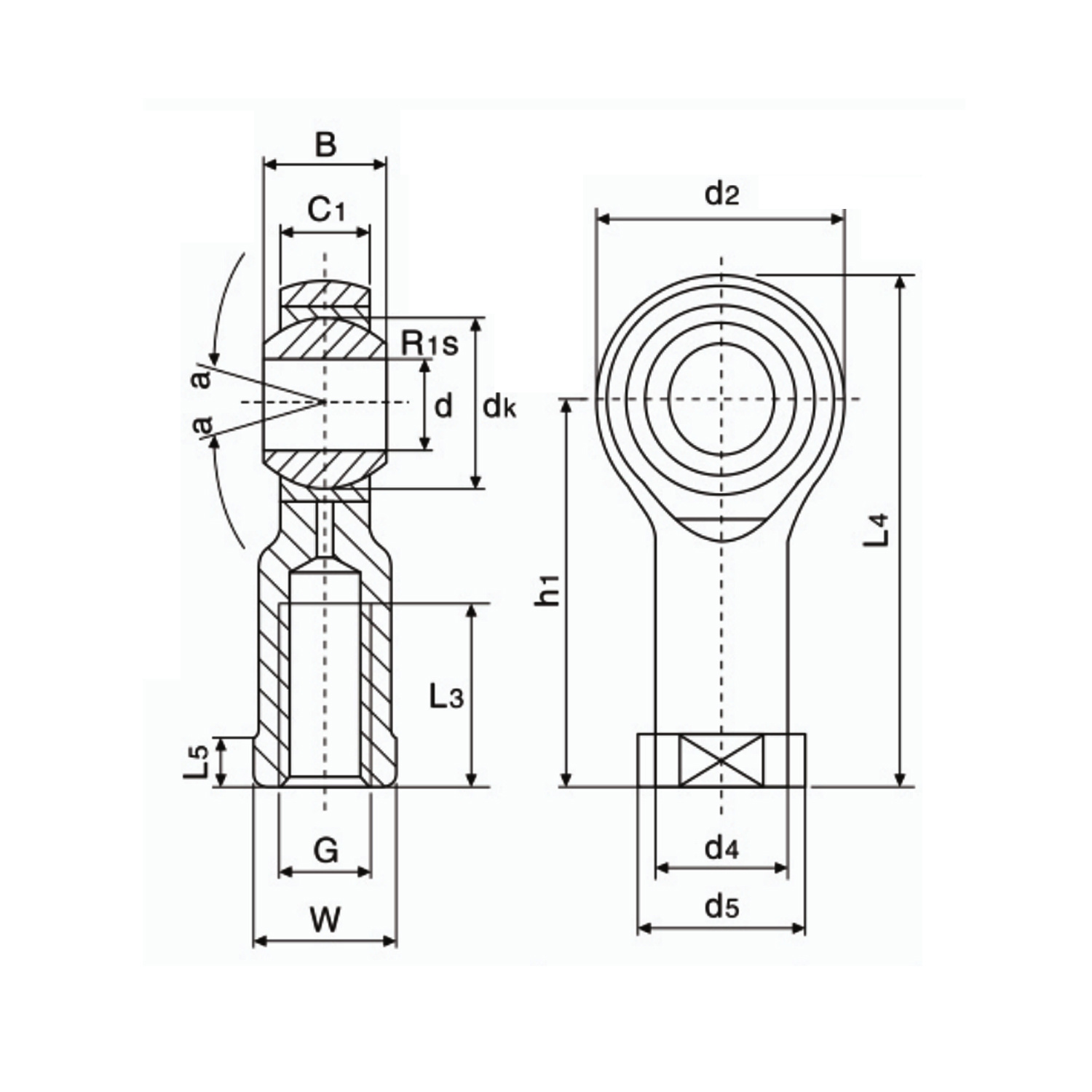

    <p><img id="1849377411281408000" src="https://omo-oss-image.thefastimg.com/portal-saas/new2023033118164698268/cms/image/3d7ed77a-6e6b-40a1-8974-d5fec5c3b394.jpg" style="width: 100%; height: auto;" /></p>

  •  Bearing
     number    		  Dimensions (mm) Load ratings
    KN
    d B  dk C₁
     max    		 d₂
     max    		 G
    6H    		 h₁ L₃
     m1n    		 L4
     max    		 L5 W d4 d5 R1S
     m1n    		 a°
    ≈    		 动 dyn. C 静 stat. C0
    SI 5T/K 5 8 11.11 6 18 M5x0.8 27 10 36 4 9 8.5 11 0.3 13 5.7 6
    SI 6T/K 6 9 12.70 6.75 20 M6x1.0 30 12 40 5 11 10 13 0.3 13 7.2 7.65
    SI 8T/K 8 12 15.875 9 24 M8×1.25 36 16 48 5 14 12.5 16 0.3 14 11.6 12.9
    SI 10T/K 10 14 19.05 10.5 28 M10x1.5 43 20 57 6.5 17 15 19 0.3 13 14.5 18
    SI 10-1T/K 10 14 19.05 10.5 28 M10x1.25 43 20 57 6.5 17 15 19 0.3 13 14.5 18
    SI 12T/K 12 16 22.225 12 32 M12x1.75 50 22 66 6.5 19 17.5 22 0.3 13 17.0 24
    SI 12-1T/K 12 16 22.225 12 32 M12x1.25 50 22 66 6.5 19 17.5 22 0.3 13 17.0 24
    SI 14T/K 14 19 25.40 13.5 36 M14x2.0 57 25 75 8 22 20 25 0.3 16 24.0 31
    SI 14-1T/K 14 19 25.40 13.5 36 M14×1.5 57 25 75 8 22 20 25 0.3 16 24.0 31
    SI 16T/K 16 21 28.575 15 42 M16×2.0 64 28 85 8 22 22 27 0.3 15 28.5 39
    SI 16-1T/K 16 21 28.575 15 42 M16×1.5 64 28 85 8 22 22 27 0.3 15 28.5 39
    SI 18T/K 18 23 31.75 16.5 44 M18x1.5 71 32 93 10 27 25 31 0.3 15 42.5 47.5
    SI20T/K 20 25 34.925 18 50 M20×1.5 77 33 102 10 30 27.5 34 0.3 14 42.5 57
    SI22T/K 22 28 38.1 20 54 M22×1.5 84 37 111 12 32 30 38 0.3 15 57.0 68
    SI25T/K 25 31 42.85 22 60 M24x2.0 94 42 124 12 36 33.5 42 0.3 15 68.0 85
    SI28T/K 28 35 47.6 24 66 M27×2.0 103 51 136 14 41 37 46 0.3 15 86.0 107
    SI 30T/K 30 37 50.8 25 70 M30×2.0 110 51 145 15 41 40 50 0.3 17 88.0 114
    SI30-1T/K 30 37 50.8 25 70 M27x2.0 110 51 145 15 41 40 50 0.3 17 88.0 114
    SI35T/K 35 43 57.1 28 81 M36×3.0 125 56 165.5 17 50 46 58 0.3 16 101 206
    SI40T/K 40 49 66.6 33 91 M42×2.0 142 60 187.5 19 55 53 65 0.3 17 124 280
    SI50T/K 50 60 82.5 45 117 M48x2.0 160 65 218.5 23 65 65 75 0.3 12 308 485

«
