HL.42061

Leveling feet

Color Chrome plated,silver color Material Carbon steel,chrome plating base
Other material Bolt is carbon steel chrome plated Usage Machine support legs,leveling feet,adjustable feet
+

  • 产品描述
  • Description
    • Commodity name: HL.42061
    • Commodity ID: 42061
    • 单独产品名称: Leveling feet
    • 底座材质: Steel
    • 主要材质: Bakelite,Stainless steel
    • 底座长度: 40,50,80
    • 螺纹直径: M10,M12,M16
    • 螺杆长度: 50,80,100,150,200

    <p><img id="1715291251294896128" src="https://omo-oss-image.thefastimg.com/portal-saas/new2023033118164698268/cms/image/580f8d5c-e53b-40df-a1b8-d31ee96e0fc8.jpg" style="max-width: 100%; width: auto; height: auto;" /></p>

    Color Chrome plated,silver color Material Carbon steel,chrome plating base
    Other material Bolt is carbon steel chrome plated Usage Machine support legs,leveling feet,adjustable feet
  • Connection type-X
    C: Circlip connection
    N: Nut connection

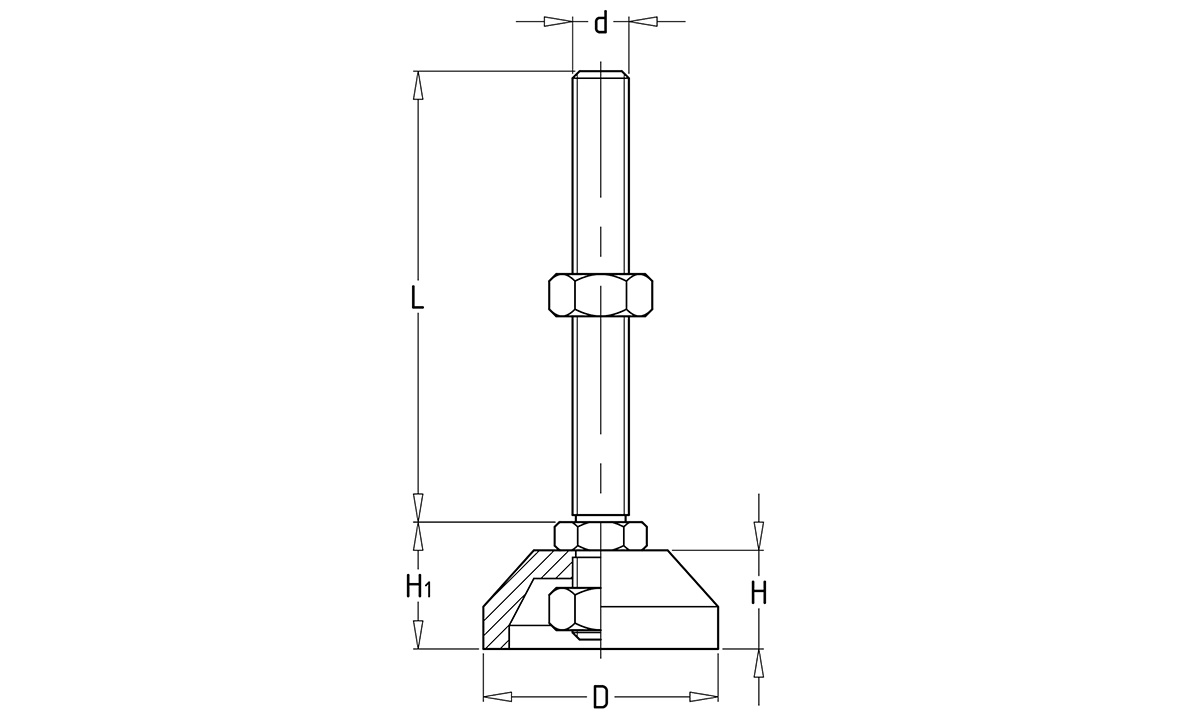

    42061 D d(M) L H Max static load Anti-slip disc
    HL.42061-X-40-8xL 40 8 5080100 21 500kg A-with disc
    B-without disc
    HL.42061-X-40-10xL 10 600kg
    HL.42061-X-40-12xL 12 5080100150 700kg
    HL.42061-X-50-10xL 50 10 5080100 21 700kg
    HL.42061-X-50-12xL 12 5080100150 800kg
    HL.42061-X-50-16xL 16 5080100120150 1000kg
    HL.42061-X-60-10xL 60 10 5080100 21 800kg
    HL.42061-X-60-12xL 12 5080100150 1200kg
    HL.42061-X-60-16xL 16 5080100120150 1500kg
    HL.42061-X-80-12xL 80 12 5080100150200 22 1200kg
    HL.42061-X-80-16xL 16 1500kg
    HL.42061-X-80-20xL 20 1800kg

«
