HL.13030
Bakelite three spoked handwheel,keyway hub without grip handle
| Color | Black, glossy finish | Material | Bakelite(PF) |
| Other | Steel hub, with keyway | Usage | Bakelite three spoked handwheel,keyway hub without grip handle |
- 产品描述
- Description
-
- Commodity name: HL.13030
- Commodity ID: 13030
- 单独产品名称: Bakelte Handwheel
- 主要材质: Aluminum alloy
- 主要配件: 56
- 手轮外径: 100,125,160,200,300,250
- 安装孔直径: 12,16,18,20,22,25
<p><img id="1715264153521954816" src="https://omo-oss-image.thefastimg.com/portal-saas/new2023033118164698268/cms/image/dfe8fc51-cc92-4533-bdbc-fadd08389b43.jpg" style="max-width: 100%; width: auto; height: auto;" /></p>
Color Black, glossy finish Material Bakelite(PF) Other Steel hub, with keyway Usage Bakelite three spoked handwheel,keyway hub without grip handle -

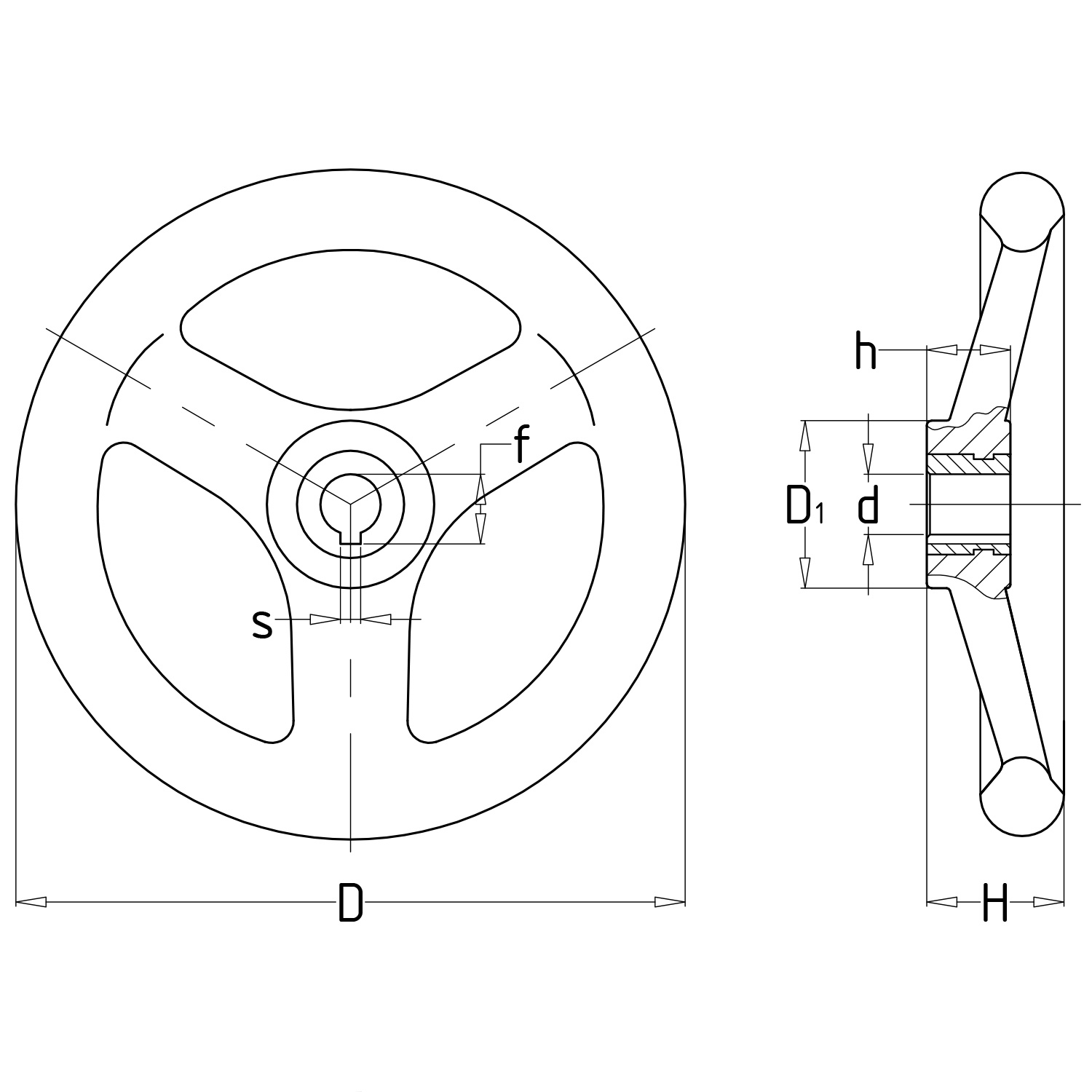

13030 D d h H D1 s HL.13030-D100-12 100 12 18 29 34 4 HL.13030-D125-12 125 12 18 30 36 4 HL.13030-D160-16 160 16 20 36 40 5 HL.13030-D200-18 200 18 25 44 50 6 HL.13030-D250-22 250 22 28 49 56 6 HL.13030-D250-25 250 25 28 49 56 8 HL.13030-D300-25 300 25 28 58 69 8 The aperture or form of the hole can be customized according to the requirements.
